使用50mV滿量程儀表（0.5%等級）擴大電流量程

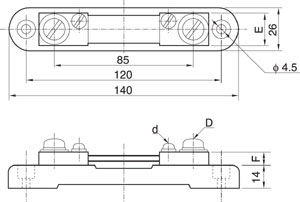

型號 | 額定電流 | E | F | d | D |
HS-1 | 30A | 20mm | 6mm | M4mm | M5mm |
HS-1 | 50A | 20mm | 8mm | M4mm | M8mm |
HS-1 | 75A | 20mm | 8mm | M4mm | M8mm |
HS-1 | 100A | 20mm | 15mm | M5mm | M8mm |
HS-1 | 150A | 20mm | 15mm | M5mm | M8mm |
HS-1 | 200A | 25mm | 15mm | M5mm | M10mm |
HS-1 | 300A | 25mm | 15mm | M5mm | M10mm |
產品規格
型號 | 額定電流 | 精度 |
HS-1-30 | 30 A | 額定電流80%時±0.5% |
HS-1-50 | 50 A | |
HS-1-75 | 75 A | |
HS-1-100 | 100 A | |
HS-1-150 | 150 A | |
HS-1-200 | 200 A | |
HS-1-300 | 300 A | ±0.5 % at 0 A to 200 A |
